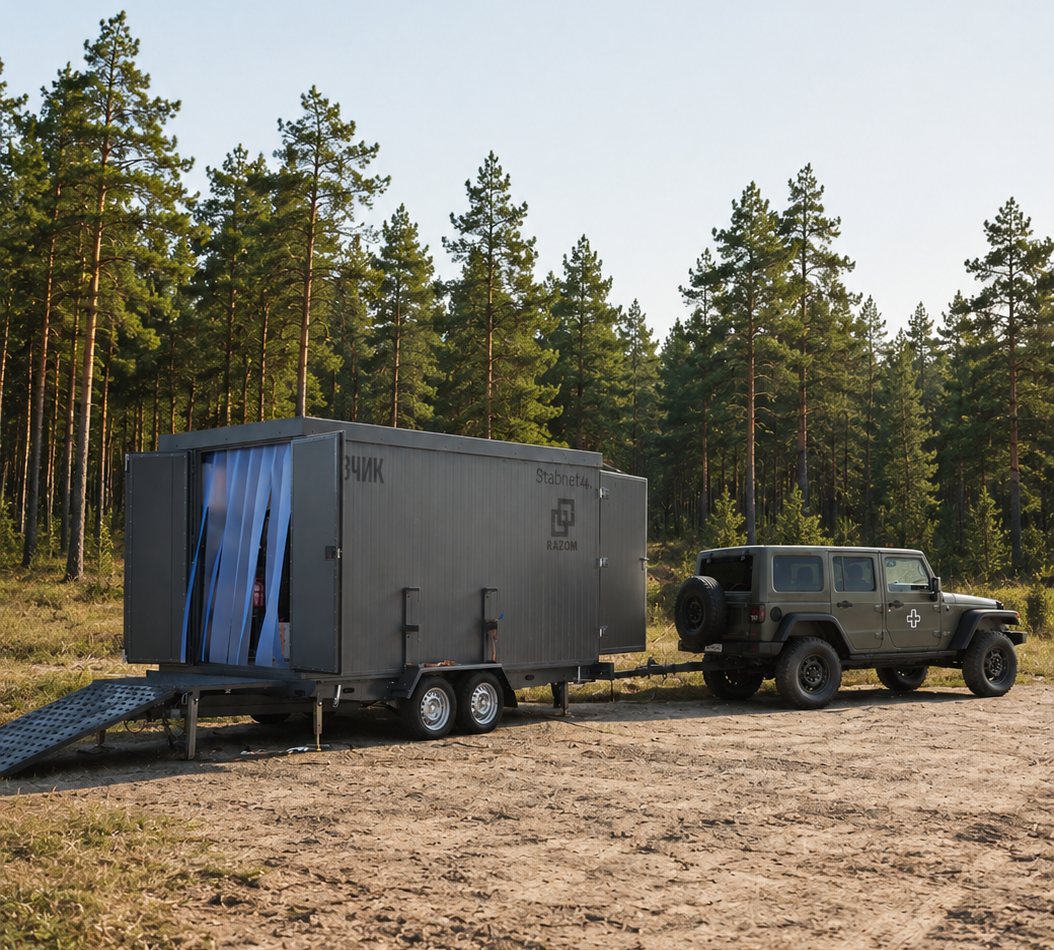

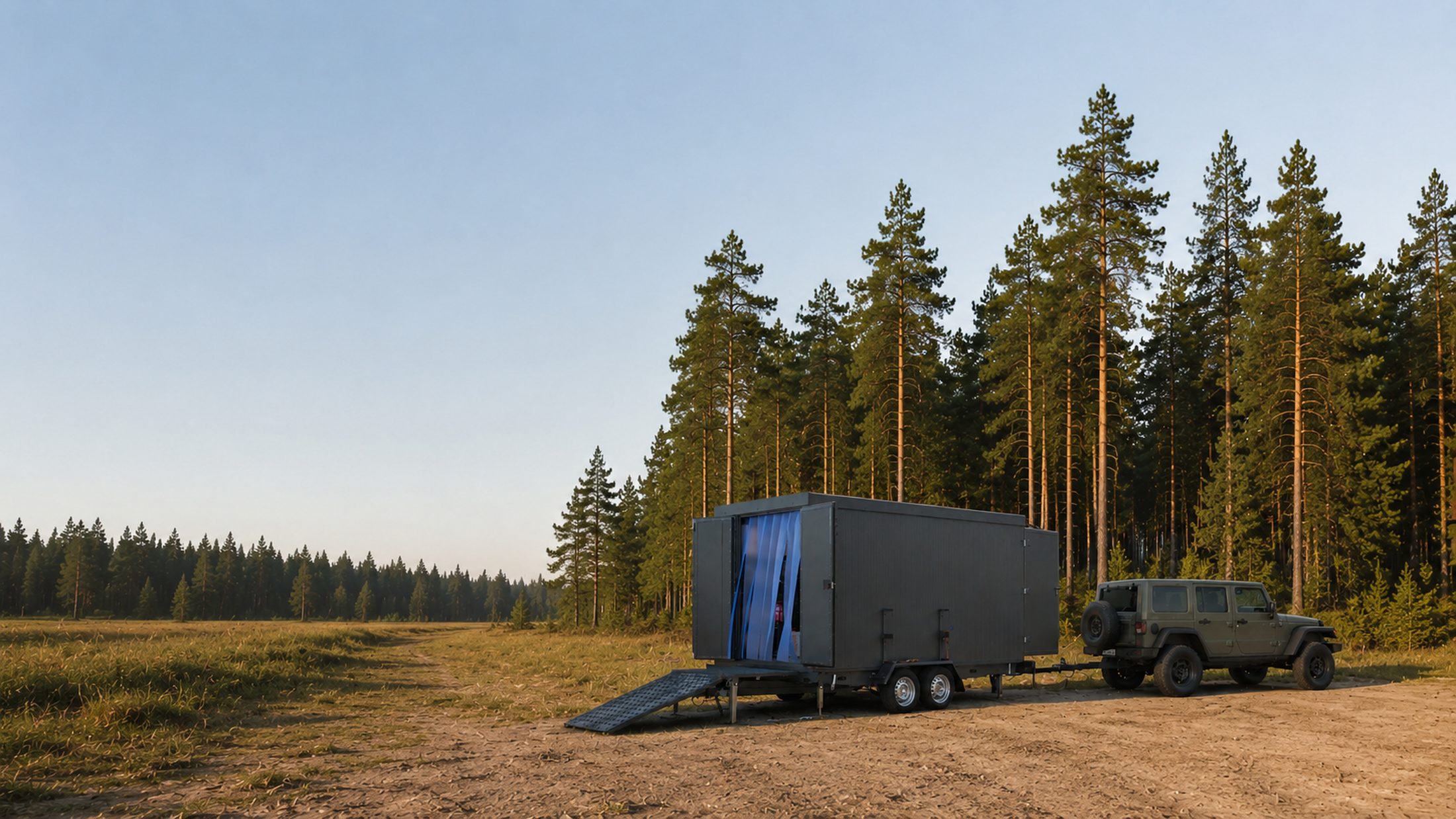

ORTAN module deployed in a forest clearing, towed by a military 4x4

Mobile infrastructure
that moves with
the mission.

Hyper-mobile, autonomous, towable, plug-and-stay — with ballistic protection.

Proven in real combat conditions through continuous operational use in Ukraine.

Discuss your mission → Explore the platform
  1. 01Tow→
  2. 02Stop→
  3. 03Open→
  4. 04Operate

Frontline proven.

130+ ORTAN modules deployed in frontline operations
200,000+ Personnel supported across all ORTAN configurations
4+ years In frontline service

Designed with frontline military medics and refined through thousands of real casualty encounters — over 200 technical changes came from the teams operating under fire.

Officially endorsed by the Command of the Medical Forces of the Armed Forces of Ukraine — the country's highest military medical authority.

See it in the field →

Different deployment models.

UAV threats make concentrated infrastructure increasingly vulnerable.
ORTAN disperses capability across compact, relocatable nodes.

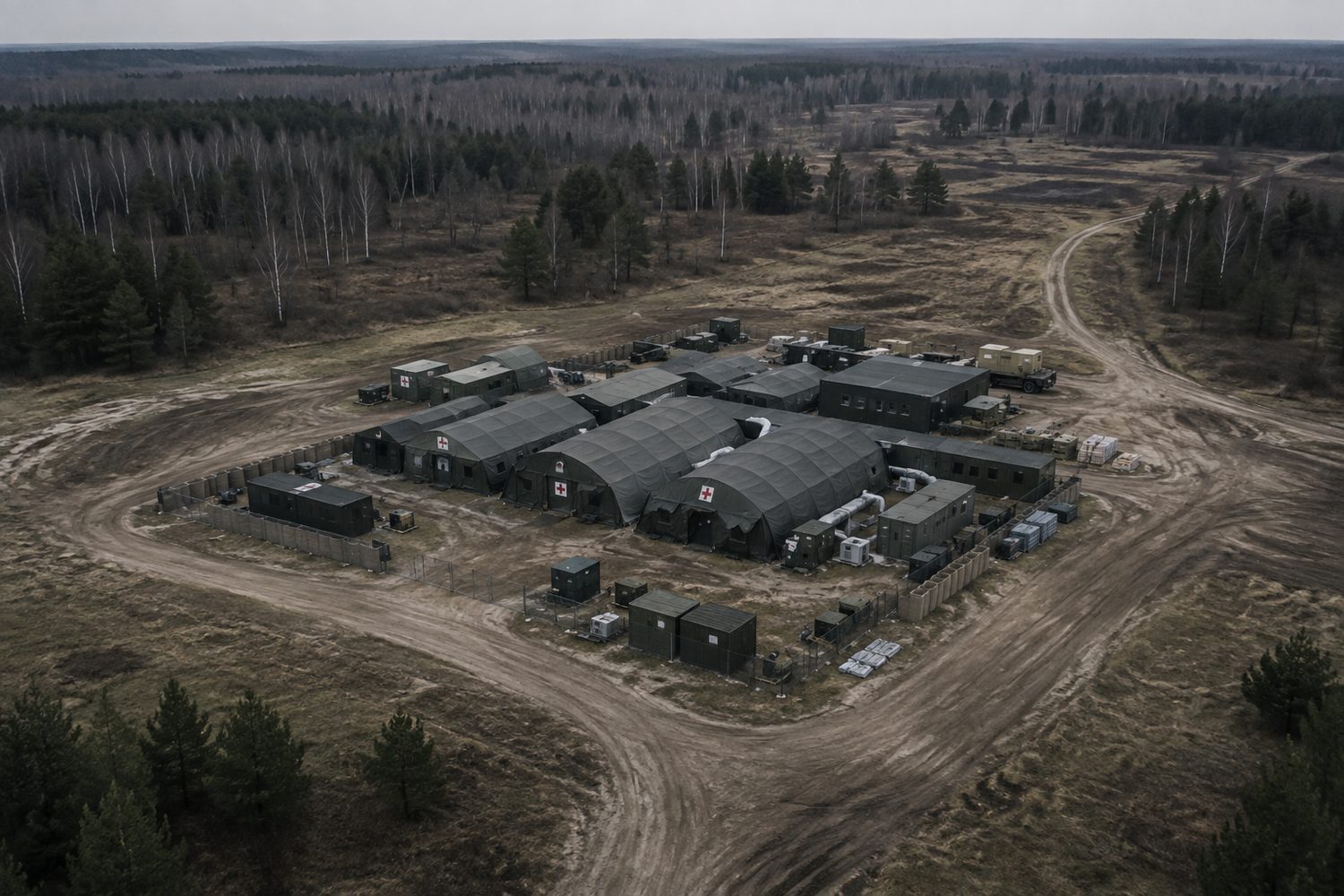

Concentrated medical infrastructure, aerial view

Concentrated model

One large facility

  1. Large footprint
  2. High visual signature
  3. Specialist transport & slow relocation
  4. Single critical node

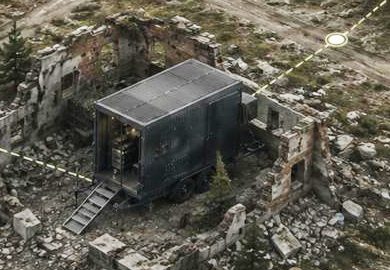

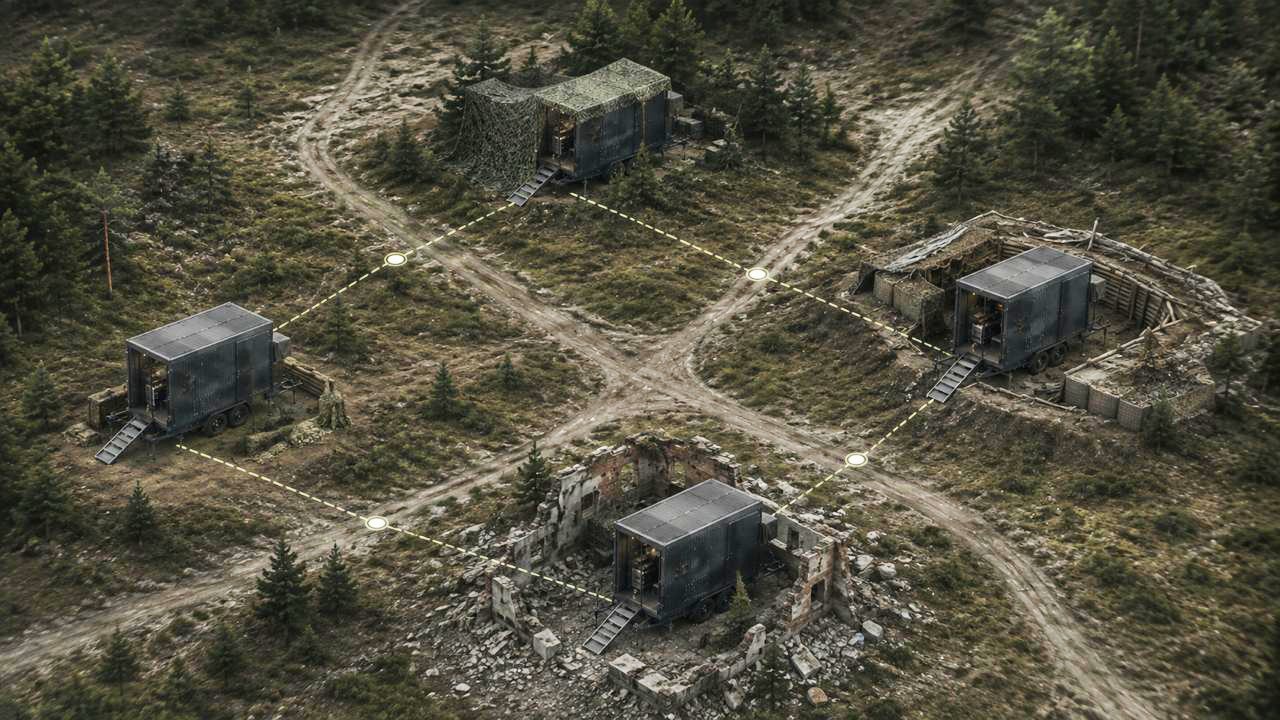

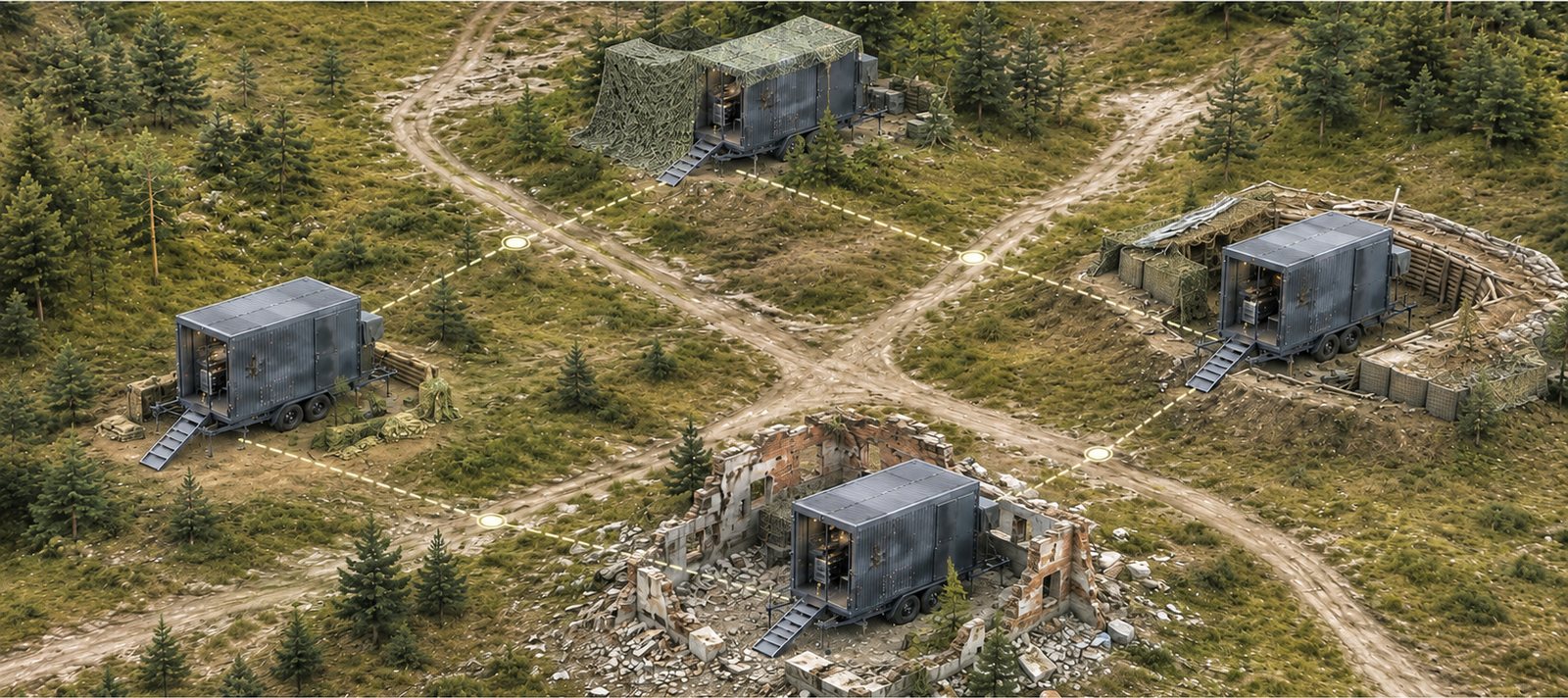

Distributed network of compact modules, aerial view

Distributed ORTAN model

Multiple compact nodes

  1. Compact footprint
  2. Easier to conceal
  3. Standard towing & rapid relocation
  4. Distributed resilience

Tow. Stop. Open. Operate.

Five minutes. One person. No specialist equipment, no site preparation, no rebuilding the workspace.

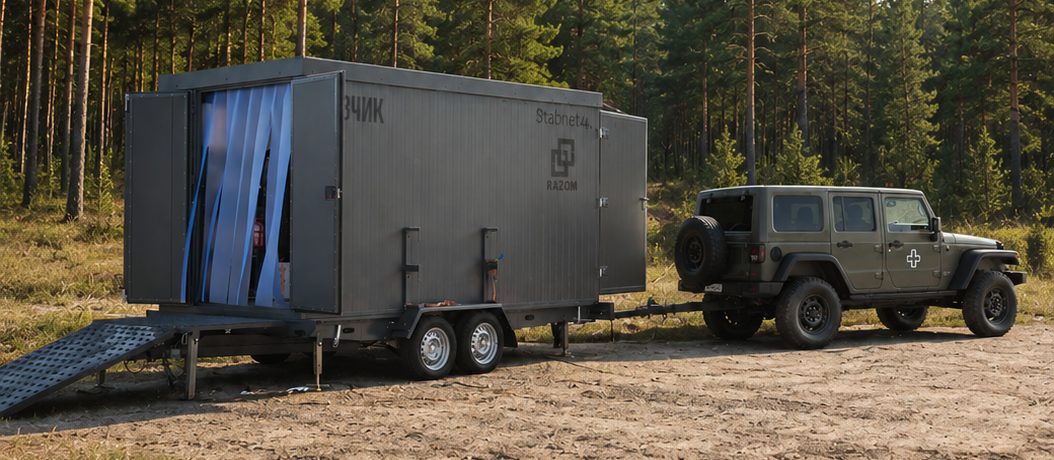

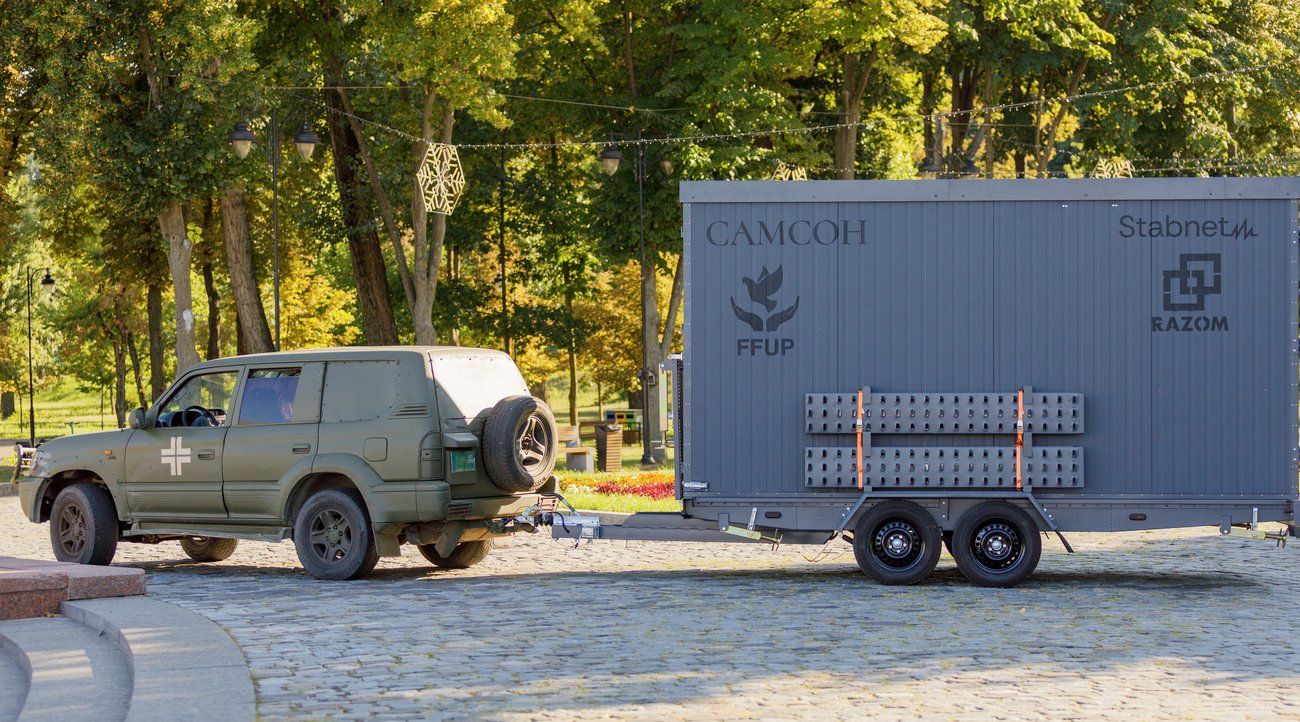

01Module towed by a 4x4

Tow

Towed by any suitable vehicle to the position where it is needed.

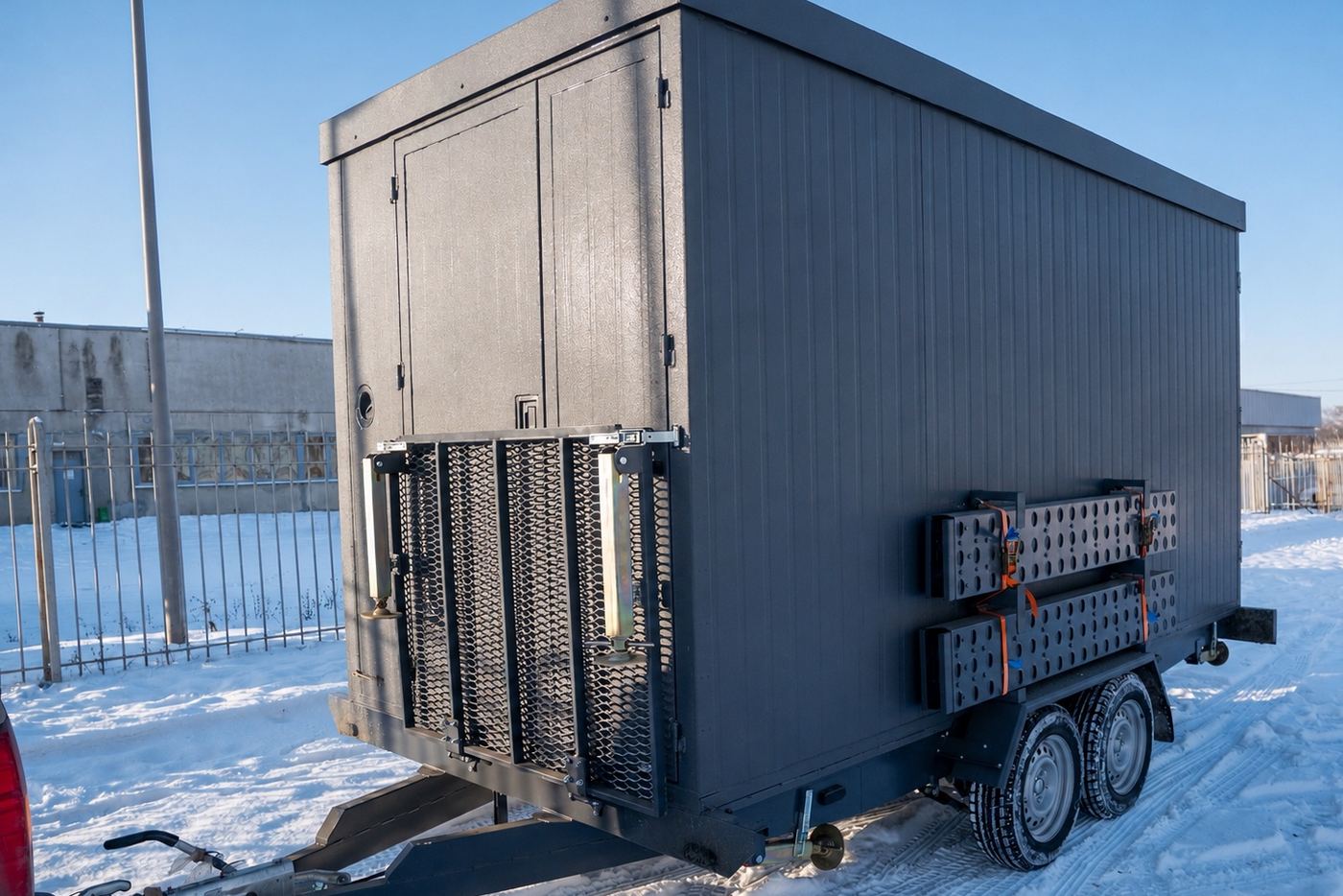

02Module positioned on site

Stop

Positioned and secured on four stabiliser legs. No site preparation required.

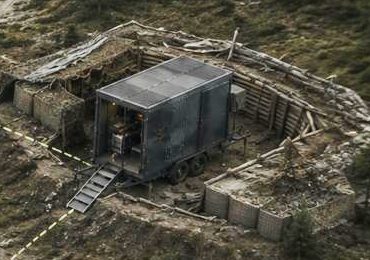

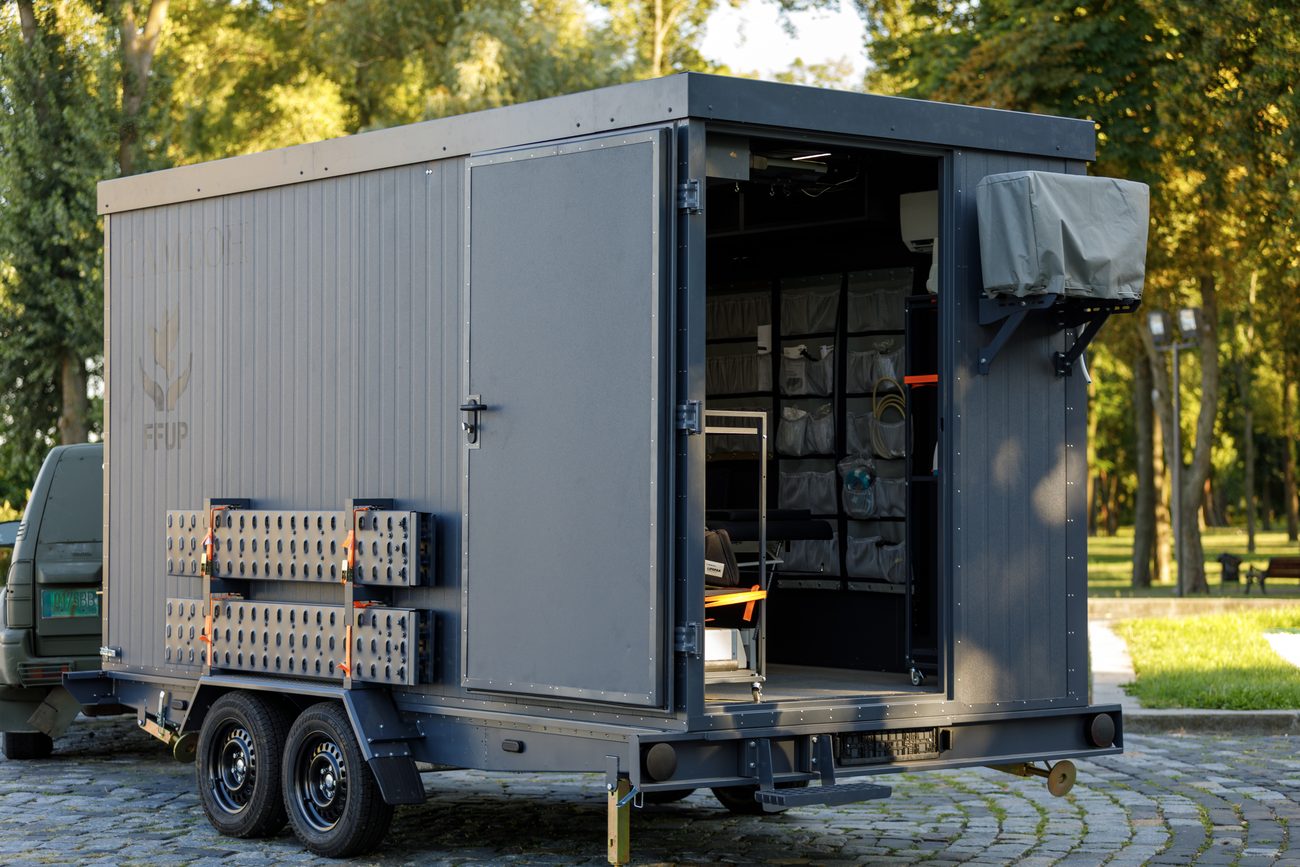

03Module opened, ramps deployed

Open

Doors open, ramps down. The workspace arrives fully equipped.

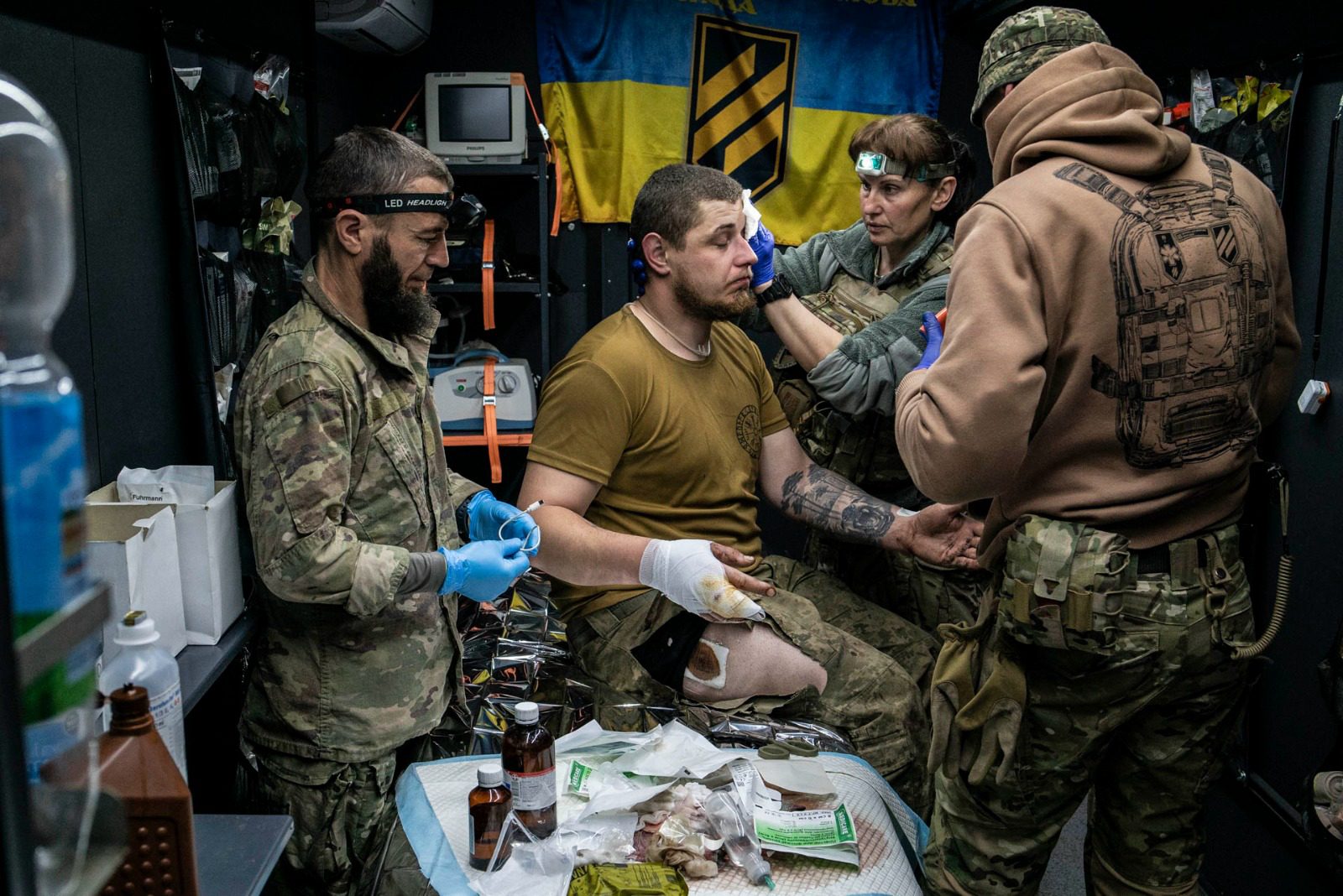

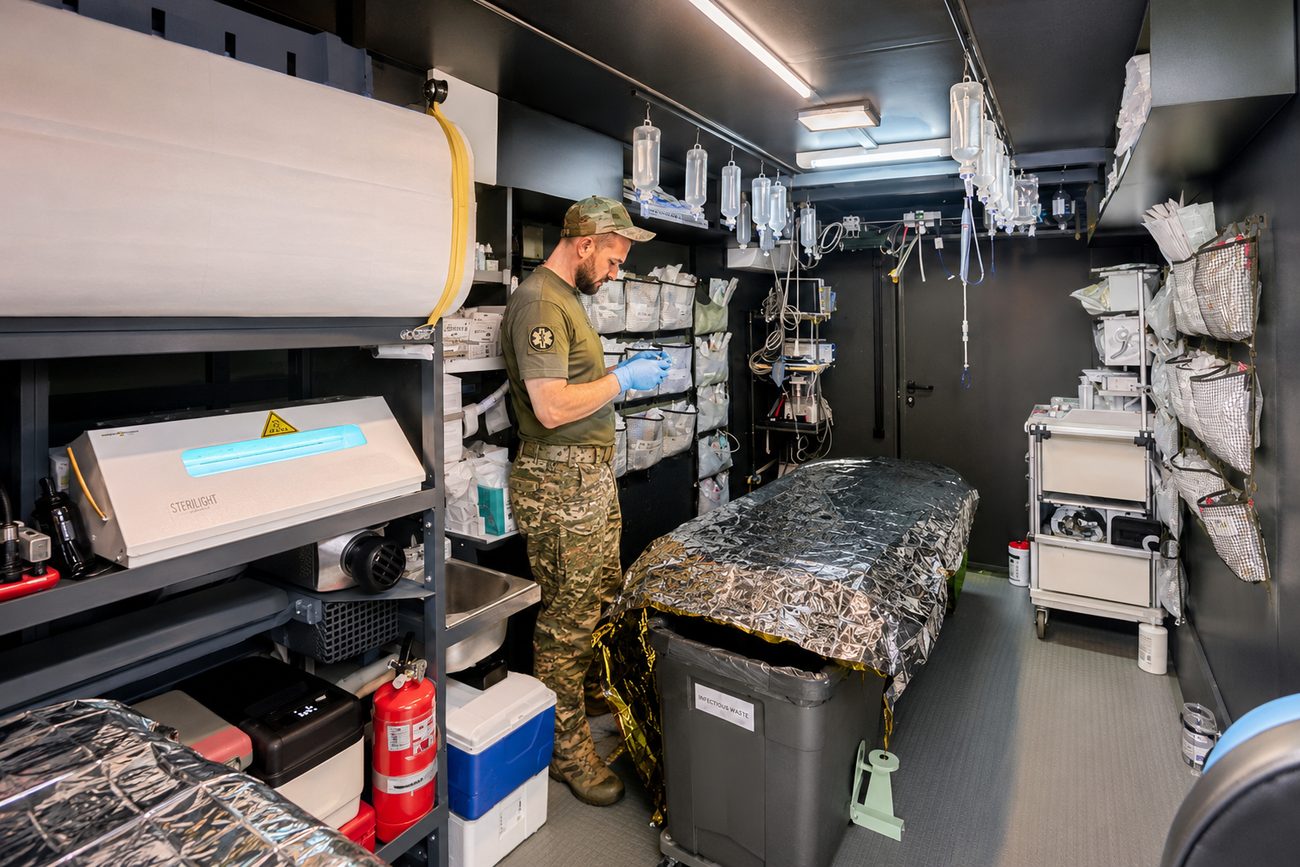

04Crew working inside the module

Operate

Power, climate and core systems onboard. Operational within five minutes.

One ORTAN platform.
Multiple missions.

The same hull, chassis and onboard systems. Only the interior changes with the mission.

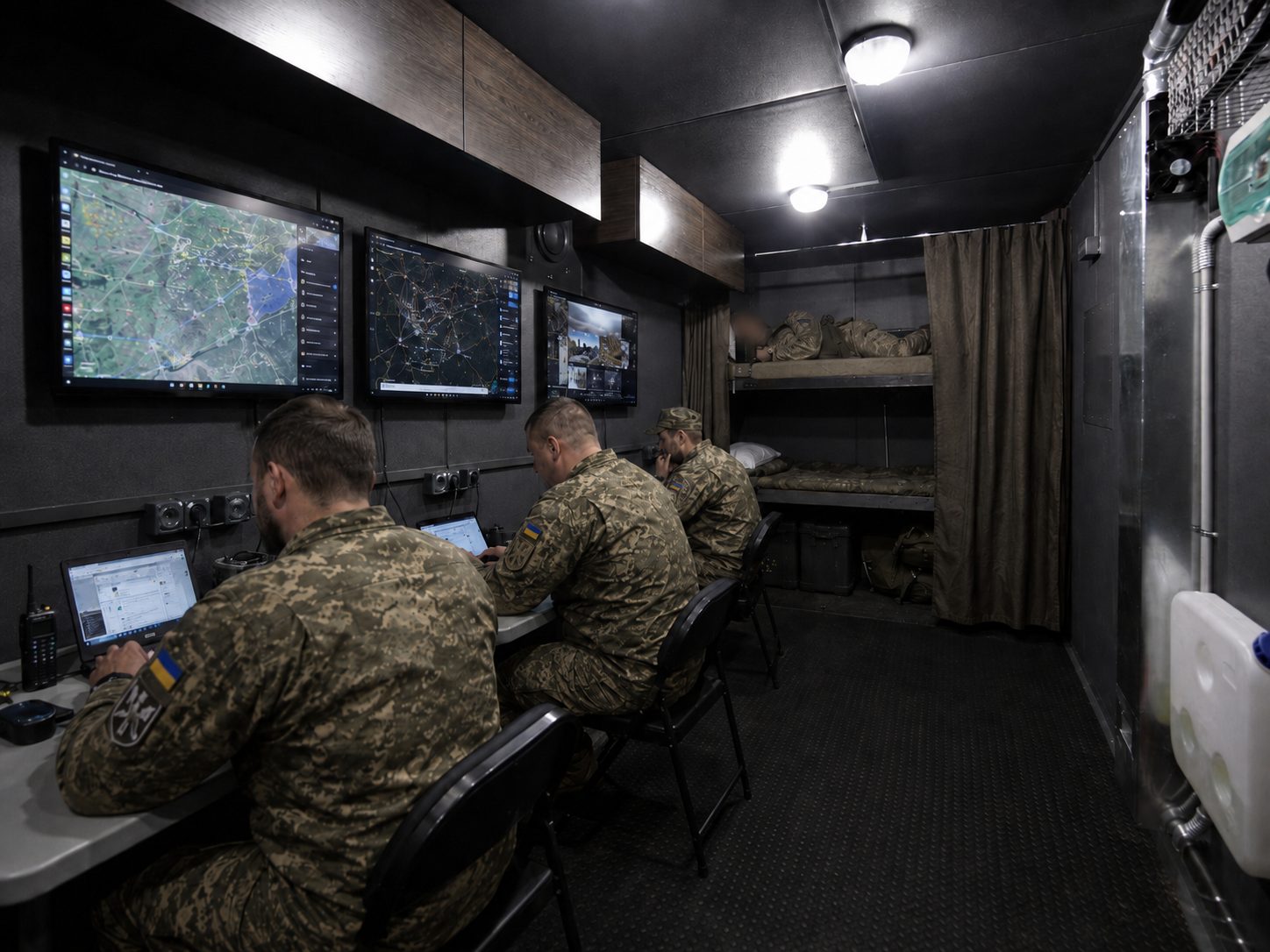

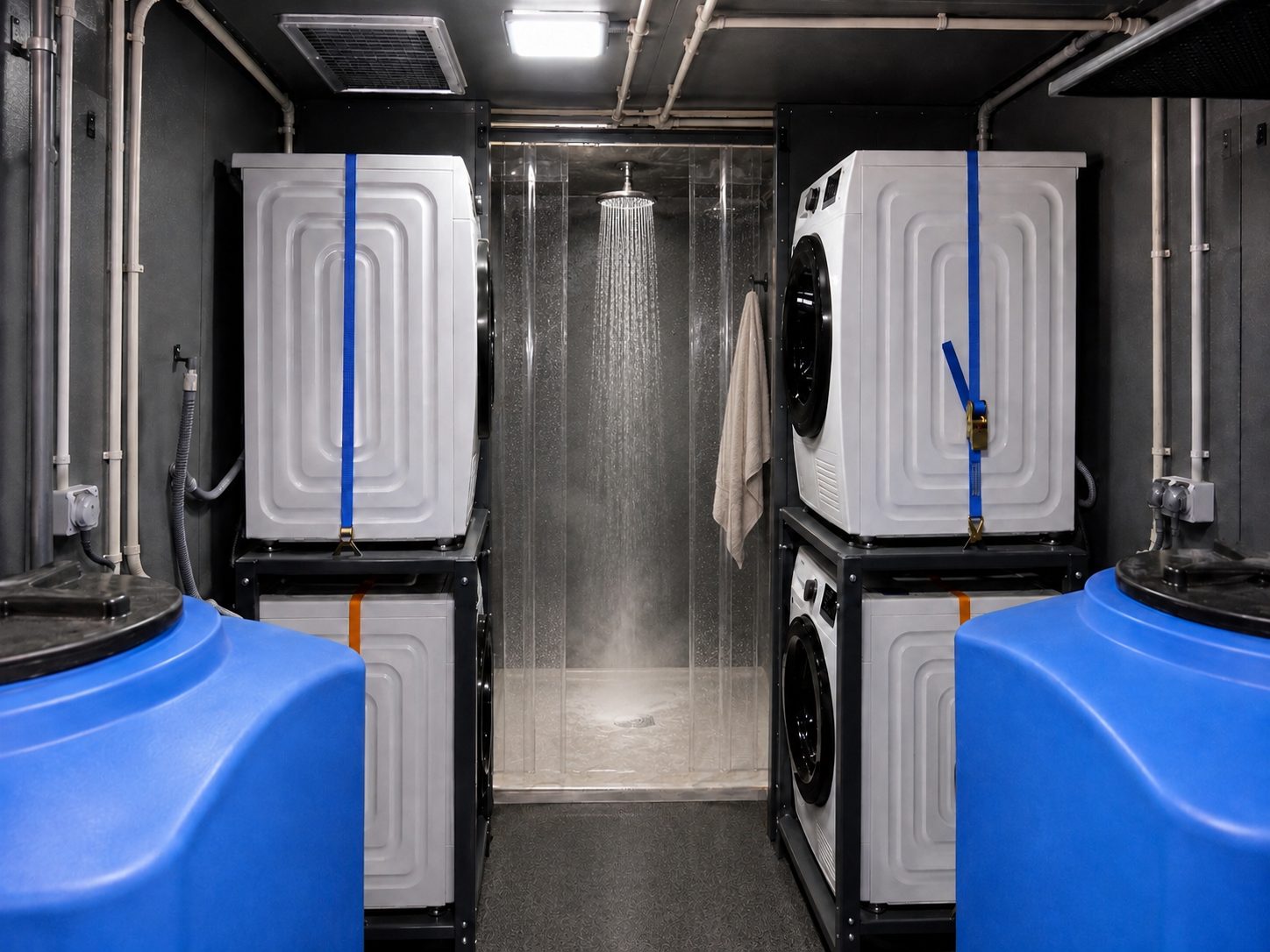

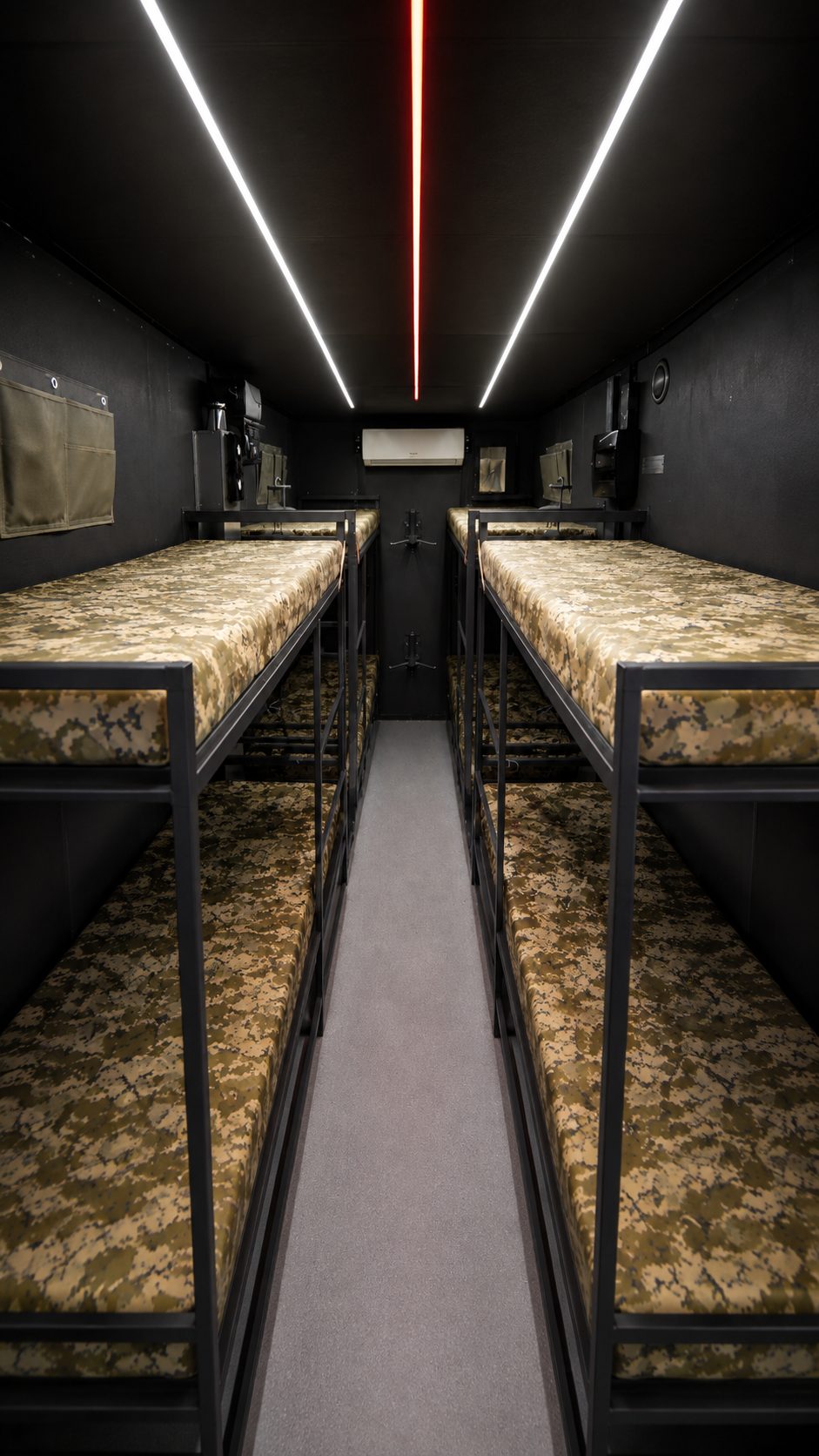

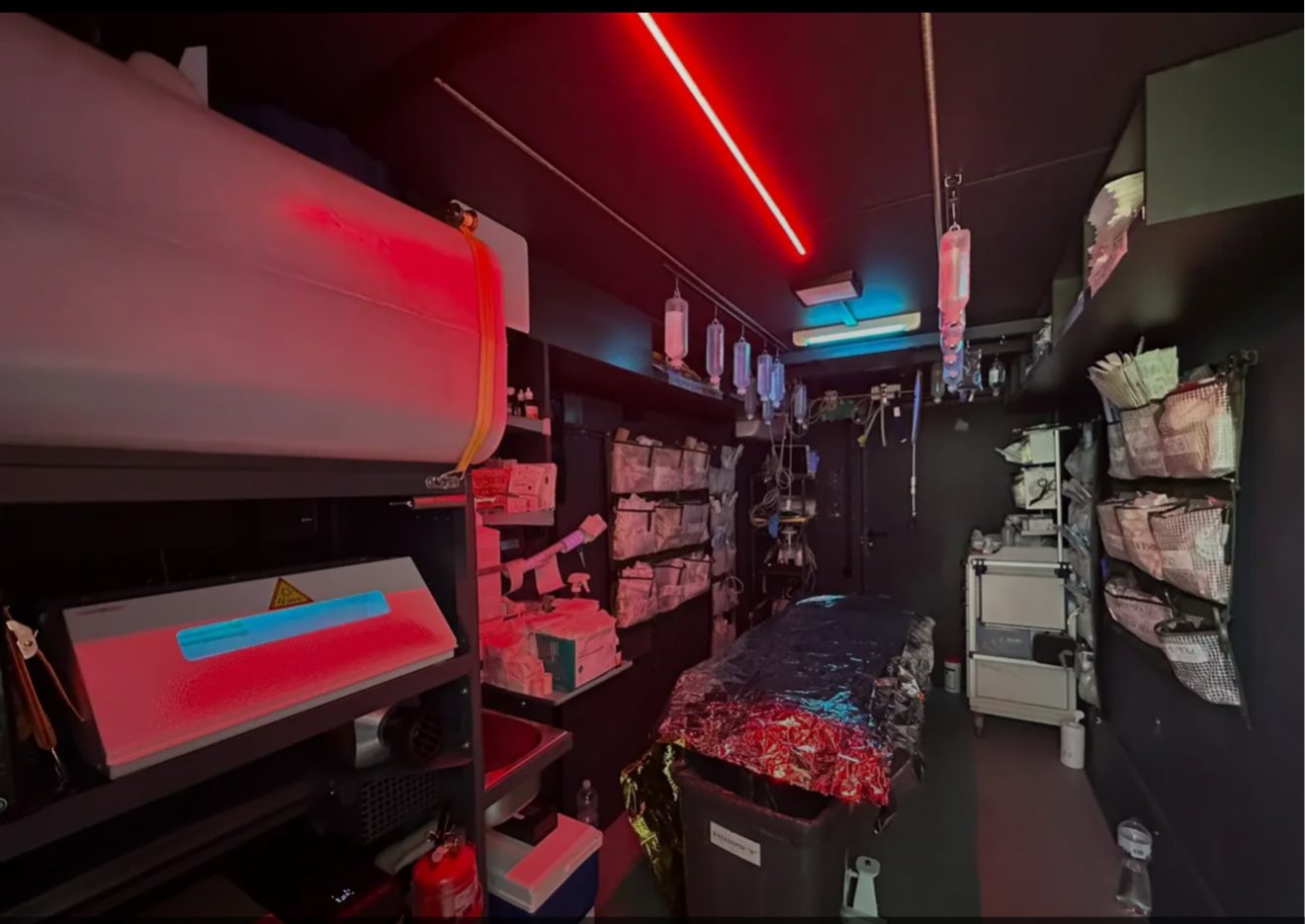

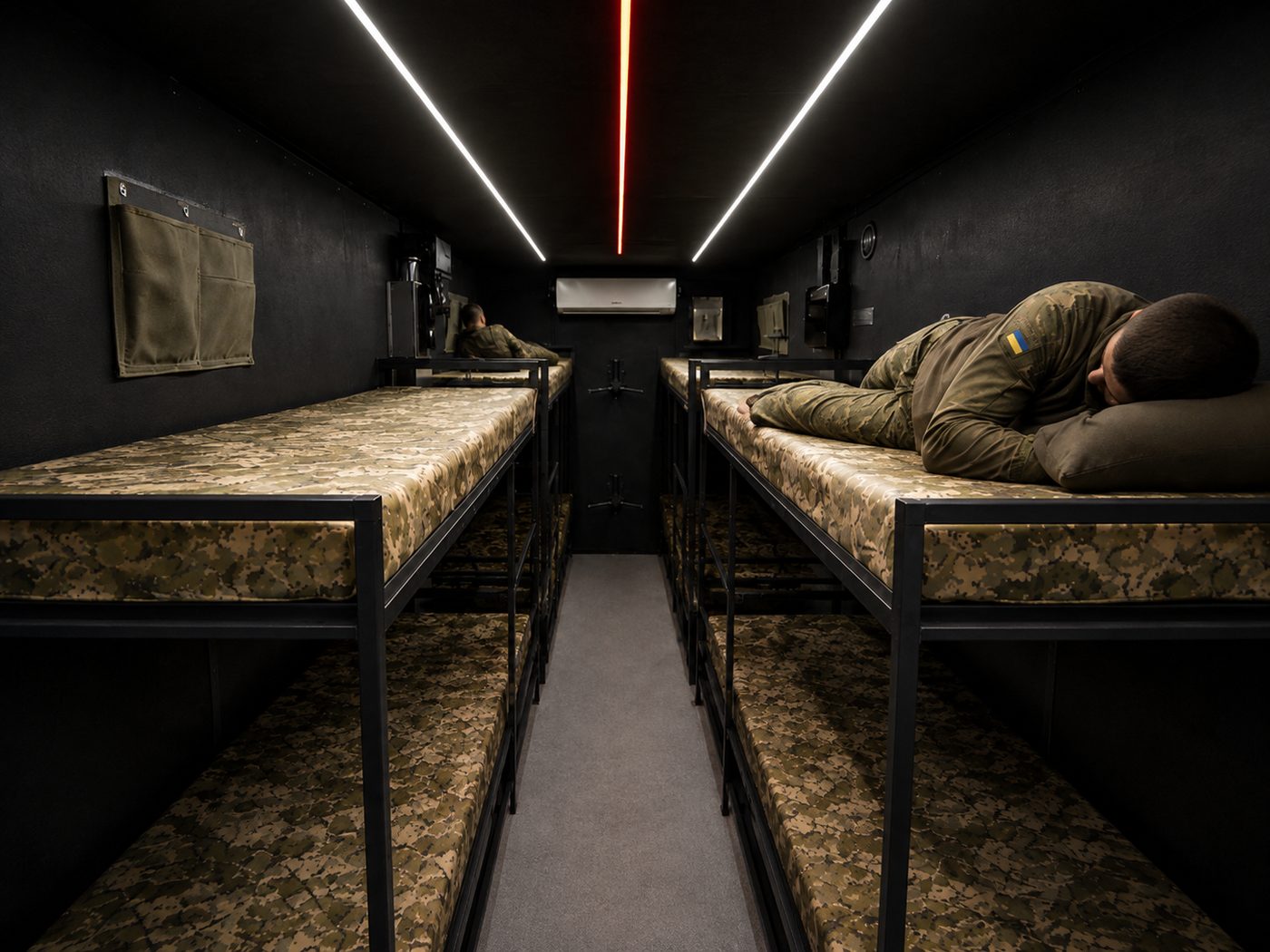

Medical configuration interior 01 Medical Stabilisation at the point of injury Hygiene configuration interior 02 Hygiene Shower, laundry and water management Accommodation configuration interior 03 Accommodation All-season quarters for up to 8 Command configuration interior 04 Command Control, comms and situational awareness Field kitchen configuration interior 05 Kitchen Hot meals for 8–10 at a time Module under integration in the workshop 06 Custom Your layout in a proven architecture

Built to operate forward.

Compact. Discreet. Mission ready. — ten square metres that can be sited in revetments, dugouts, trench positions, treelines and built-up areas.

2,300 kgTotal weight
5 minDeployment
1 personDeployment crew
10 m²Internal working area
−30 / +50 °CAll-season operation
Self poweredGenerator and battery
Anti-fragmentation protectionBallistic polyurea, up to 400 m/s
Travels fittedEquipment secured for road transport
6.0 × 2.5 × 3.0 mExternal dimensions
PIR insulationWith thermal-bridge break
Low signatureVisual and thermal
Any standard 4×4Towing

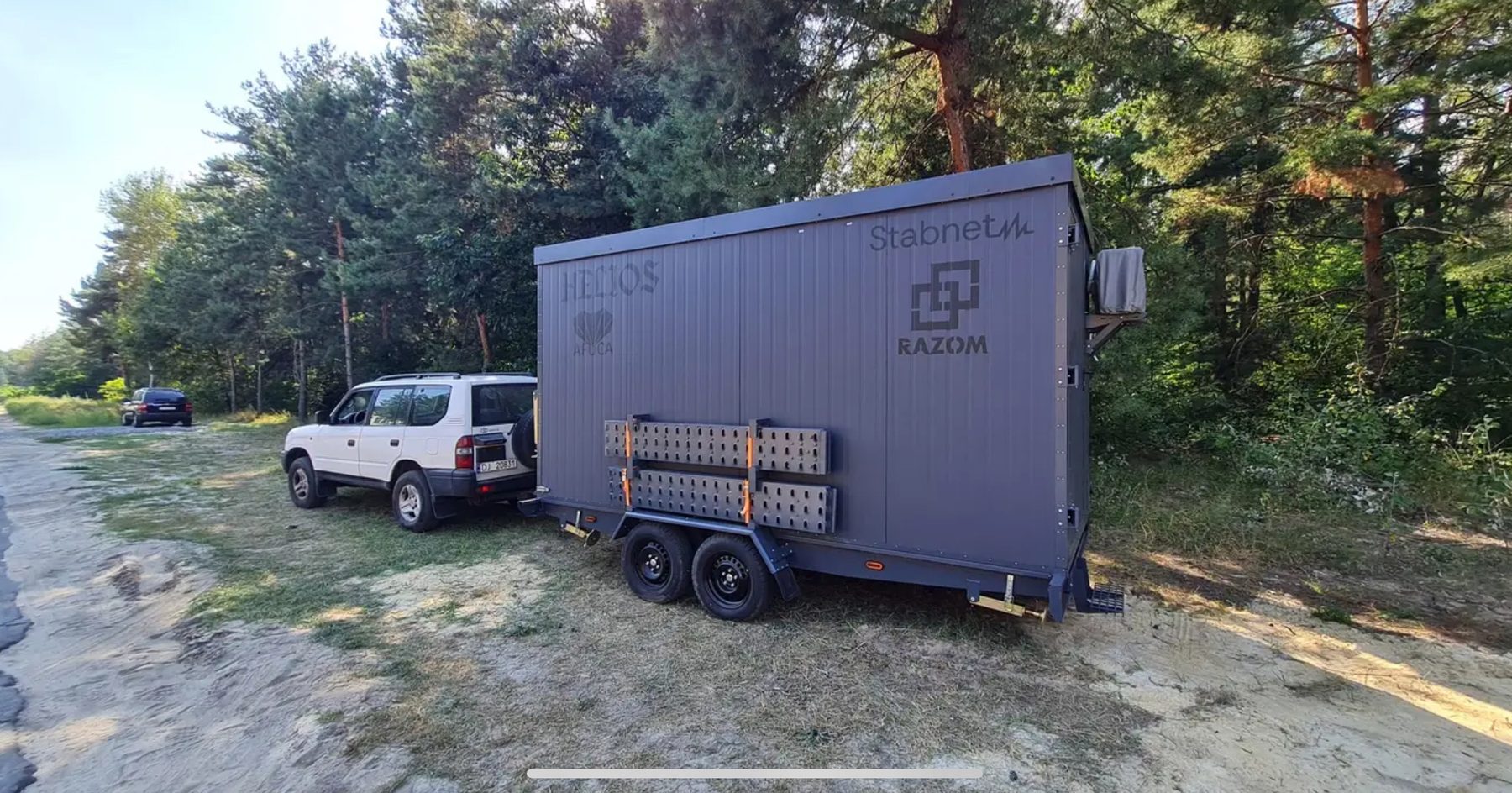

Onboard systems

Everything the mission needs, already inside.

Climate

  • Diesel heating, 5 kW
  • Reversible air conditioning, 3 kW
  • Heat-recovery ventilation
  • PIR insulation, thermal-bridge break

Water and hygiene

  • Water tank, pump and pipework
  • Heated waste-water tank with drain pump
  • Stainless sink
  • UV decontamination lamps
  • Hygienic linoleum on floor and walls

Power and systems

  • Inverter generator
  • Battery system with inverter
  • 17 power sockets, automatic breakers
  • Tactical lighting, red LED
  • Dual-axle KNOTT chassis with brakes
Available formats Technical specification Print brochure Video walkthrough Request technical specifications →

From point of injury
to hospital.

Use case STABNET

The golden hour rule hasn’t changed. The battlefield has.

Life-saving intervention happens here — not at the next stop. ORTAN closes the critical gap between the point of injury and advanced medical care.

  1. Point of injury Self / buddy aid
  2. Forward care Casualty collection
  3. STABNET Stabilisation · 2 patients
  4. Hospital Definitive care
Minutes From stop to operate
Rugged Built for field conditions
Life-saving Care at the point of injury
Scalable From one node to a network

A stabilisation workspace,
not an empty shelter.

A protected mobile medical node that brings stabilisation closer to the point of injury — the most proven configuration of the ORTAN platform.

Use case STABNET

Inside STABNET

A complete stabilisation workspace.

Use case STABNET

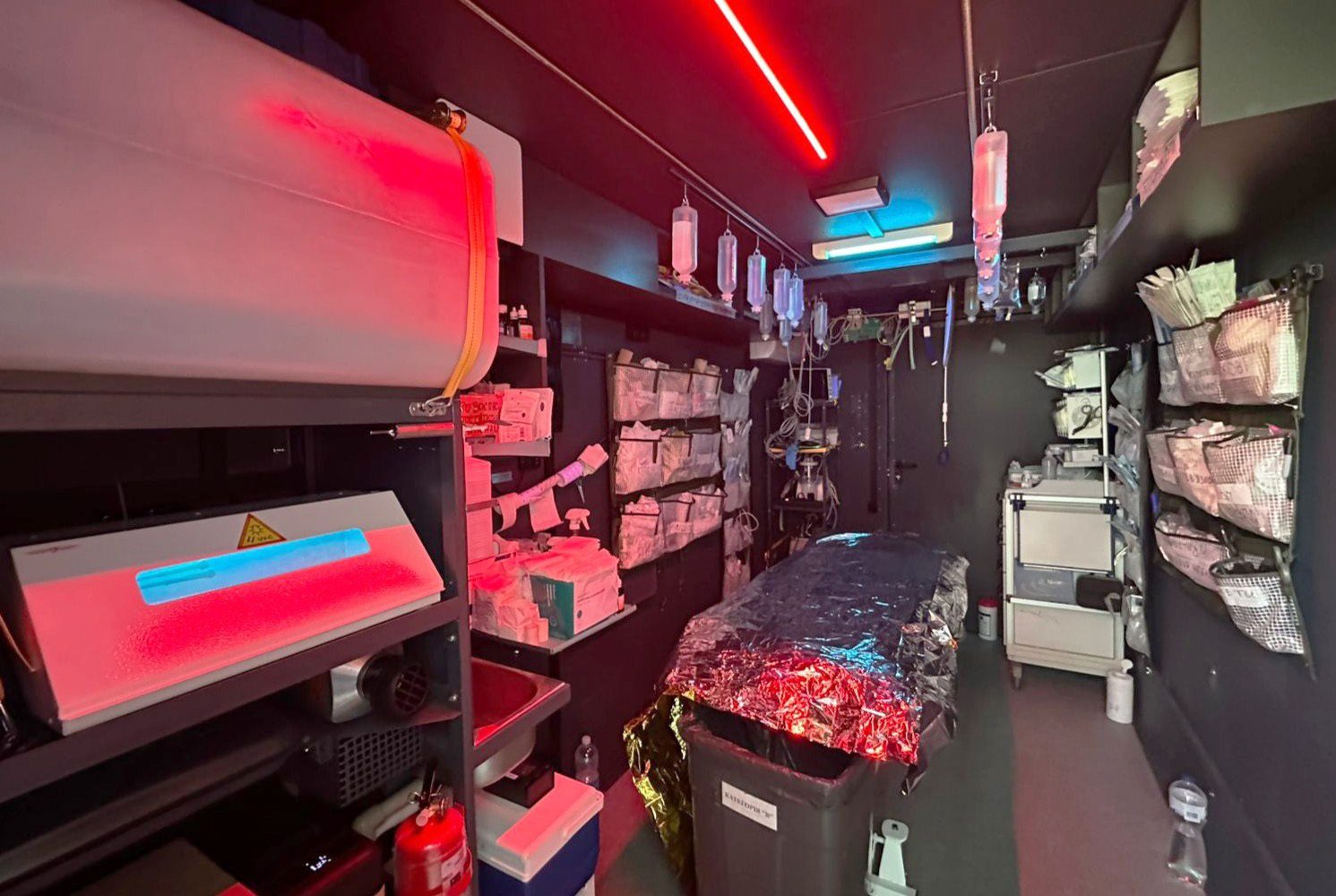

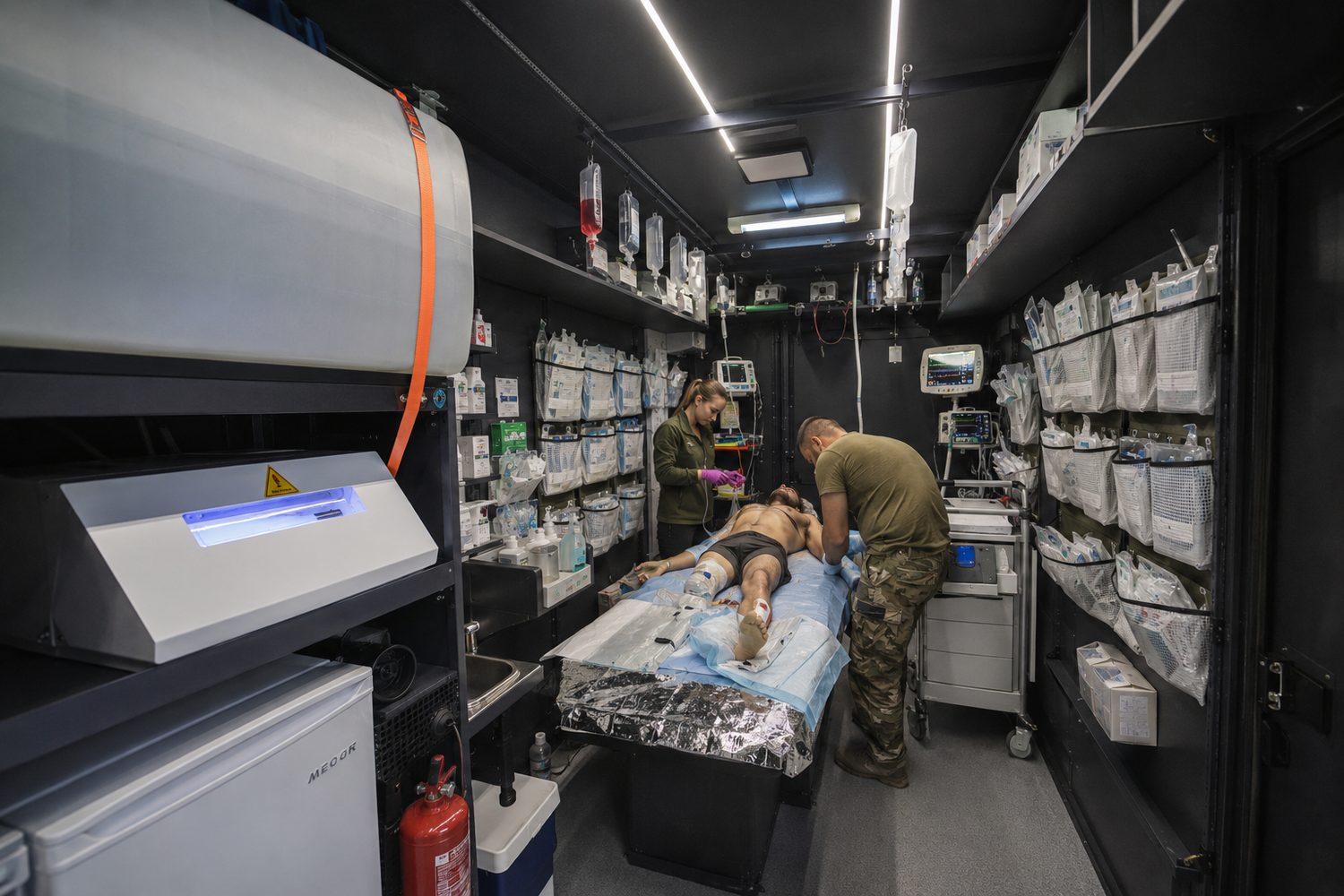

Interior of a STABNET stabilisation module
Resuscitation Ventilator · Oxygen concentrator · Defibrillator · Infusion and syringe pumps
Diagnostics Portable ultrasound · Multiparameter monitor · Blood analyser
Transfusion Two blood refrigerators · Fluid warmer · Blood warmer
Surgery Operating table · Infrared coagulator · Suction · Sterilisation chamber

In action

Real equipment. Real missions.

Video walkthroughs of ORTAN modules in operational use by Ukrainian units.

Use case STABNET
Mobile operating room in 5 minutes
Stabilisation point in action
Shower and laundry complex
Mobile accommodation
Mobile command post
Mobile field kitchen

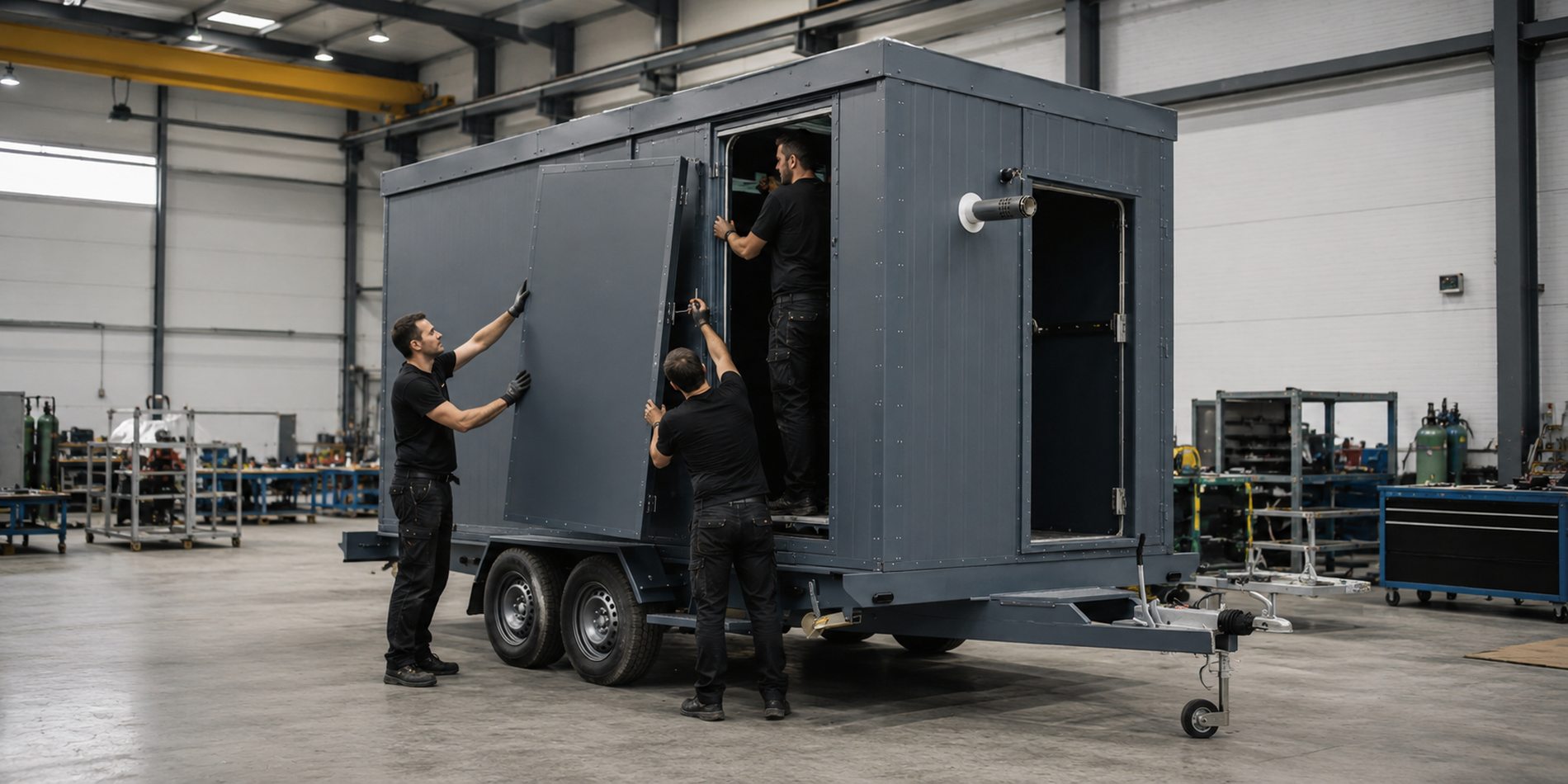

ORTAN modules in series production
Series production · Ukraine

Manufacturing

Designed in Ukraine.
Built in Ukraine.
Built to scale.

From engineering and fabrication to integration and final testing — ORTAN modules are manufactured as complete operational systems.

01Engineering

Mission-driven design and system engineering.

02Integration

Subsystems installed into a ready-to-deploy module.

03Testing

Full system check before the module leaves the shop.

04Deployment

Delivered as a complete system — connect and operate.

Standard configurations Custom engineering Series production International delivery

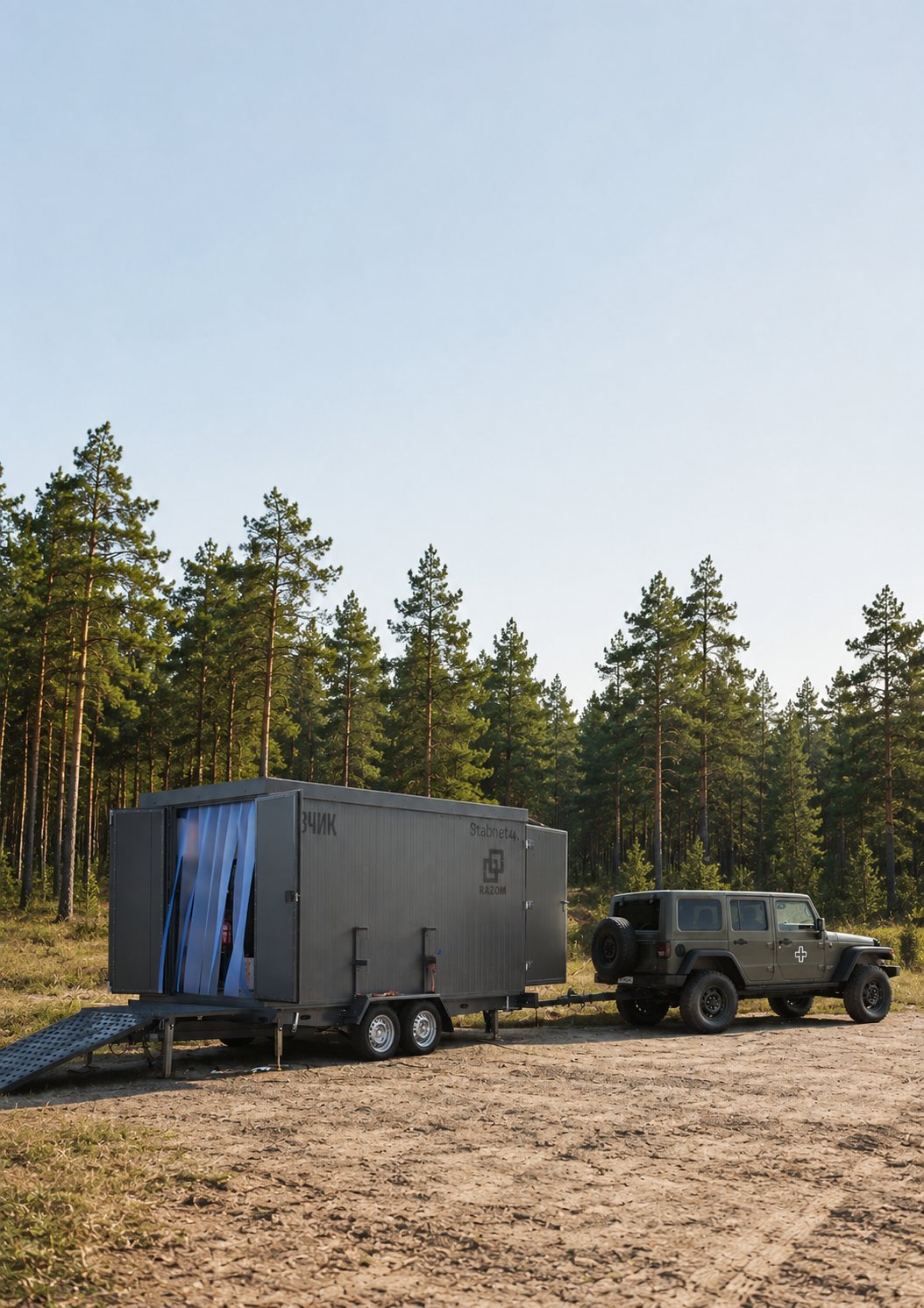

ORTAN module deployed in open terrain

ORTAN TACTICAL

What does
your mission require?

Standard configurations. Custom capability. One proven platform.

Discuss your requirements → Request technical information

Direct contact

Request for information

We reply to verified organisations and procurement enquiries.
